Essix Retainers

A simple appliance with one real decision in it. Tell us the gauge and the trim line, and dentists get back exactly the retainer they prescribed.

An Essix retainer is a thermoformed shell over the finished arch. The one genuine choice is gauge — a clinical decision, not a lab one — so the specification you send matters more than anything we do at the bench.

Jahn De Khudikine, Founder · Universal Dental Lab
Jahn De Khudikine Founder · Universal Dental Lab

Why send it here

An Essix that doesn't snap stays in the drawer. We trim and polish to a retentive fit.

A practice's schedule lives or dies by the lab — I've watched one late case push back a whole day of chair time.

So I still know the cases moving through this lab, and I answer for how each one is made. Send a case here and it doesn't drop into a queue — it lands with me and one technician who carries it start to finish.

Start a case
Your gauge
Formed in the Essix material and thickness you specify — not a house default Fit and coverage checked on the model against the opposing arch
File archived
Replacements come back in the same gauge without a new appointment A duplicate set ordered up front is cheap insurance
Your technician
One person holds your case Reach them directly — no call-center queue
Free scanner
3Shape TRIOS 6 for partners Go fully digital at no cost

Retainer Comparison

Essix, Clear Retention or Hawley?

How you order it, what it does to the occlusion, and how it fails. Those three differences decide the case — we build all three.

Thermoformed Essix retainer on the finished-arch model
Essix Retainers You are here
Clear thermoformed retainer, finished and boxed for the practice
Clear Ortho Retainers
Hawley retainer, labial wire and acrylic on the model
Hawley Retainers
Ordered by Material and gauge you specify The category — we recommend a material for the case Wire and acrylic, built on the model
Occlusal coverage Full retains well, blocks posterior settling Full None on the posterior the occlusion can settle
Durability Set by the gauge; a bruxer will still get through it Comparable; the file is archived for fast replacement Highest, and repairable rather than replaceable

Coverage and durability depend on the material, gauge and trim you specify. Send the gauge with the case, and ask for a recommendation if you want a reasoned one for a particular patient.

Appliance
Thermoformed clear retainer
Material and gauge
The Essix stock you specify
Coverage
Full occlusal
Turnaround
Quoted per case at intake
Thermoformed Essix retainer seated on the finished-arch model

Overview

Gauge Is the Decision. Everything Else Is Bench Work.

An Essix retainer is a thermoformed shell over the finished arch. There is not much to get wrong in the making — which is why the specification you send matters more than anything we do at the bench.

We form it in the Essix material and thickness you specify, trim it to the line you want, and check the fit on the model. Send the gauge with the case. If you want a recommendation for a particular patient, ask us — but we will not quietly pick one for you.

  • Heavier gauge: More rigid and longer-lasting — for a patient who is hard on appliances.

  • Lighter gauge: More comfortable and less bulky — a retainer that gets worn beats a durable one in a drawer.

Learn more

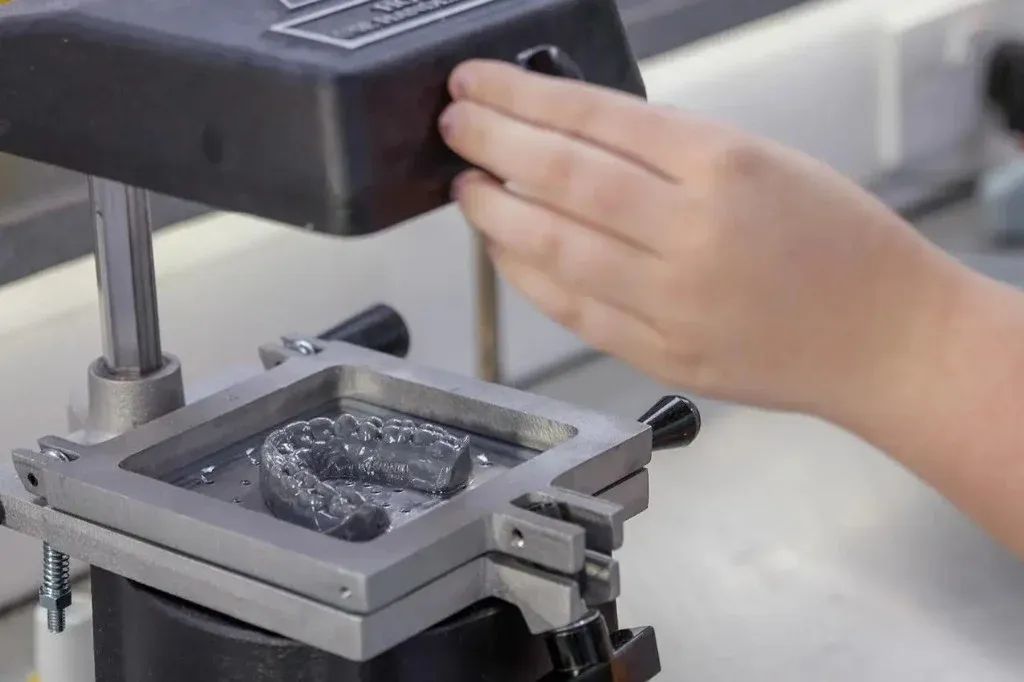

A vacuum-forming station pulling Essix stock over a printed arch model

At the Bench

Formed Over the Arch as It Finished

Most of what goes wrong with a retainer traces back to the record, not the plastic. An impression taken a fortnight after debond captures teeth that have already started to move — and the appliance then holds a position nobody intended.

The file is archived afterwards, so a replacement comes back in the same gauge without a new appointment.

  • The record: Model produced from the arch as it finished, ideally scanned the day the appliance came off.

  • The form: Formed in your specified Essix material and gauge, trimmed scalloped or extended to your instruction.

  • The check: Fit and coverage checked on the model against the opposing arch.

Learn more

Worth stating once, plainly

Full occlusal coverage is what makes this appliance retain — and it is also what stops the posterior teeth from settling into each other. If you finished a case wanting the bite to seat in, this is the wrong appliance.

Case Selection

When an Essix Retainer Is the Right Call

Indicated for

  • Post-orthodontic retention where the patient wants nothing visible
  • Full-arch retention with a snug, tooth-hugging fit straight off the model
  • Cases where a specific Essix material and gauge are already part of your protocol
  • Anterior retention after aligner treatment, where the patient is used to a tray
  • Replacement appliances in the same gauge as the original

Consider an alternative when

  • The posterior occlusion still needs to settle — full occlusal coverage prevents exactly that
  • The patient is a heavy bruxer and will fracture thermoformed material whatever the gauge
  • The appliance needs to be adjusted over years rather than replaced — that is a Hawley
  • Active tooth movement is wanted; a retainer holds, it does not move

Specifications

Essix Retainer Specifications

Material, gauge, trim and coverage — the specification you are actually sending us.

How we form and finish an Essix retainer.
Appliance Vacuum- or pressure-formed clear retainer, formed over a model of the finished arch
Material and gauge Formed in the Essix material and thickness you specify. Send the gauge with the case — the choice is a clinical one and we will not guess at it
What gauge changes A heavier gauge is more durable and more rigid; a lighter one is more comfortable and less bulky. Durability and comfort pull against each other, and where you land is a decision about the patient
Coverage Full occlusal coverage — this is what retains, and it is also why the posterior teeth cannot settle while it is worn
Trim line Scalloped at the gingival margin, or extended onto the tissue for more retention. Specify which you want
Record needed A scan or impression of the arch as finished — a retainer only holds the position it was made from
Replacements Produced from the archived finished-arch file, in the same gauge, without a new appointment
Wear protocol Prescribed by the treating dentist. We build to the prescription; we do not write it
Turnaround Quoted per case at intake

The material and gauge are your prescription, not our default. Send them with the case — and if you want a recommendation for a specific patient, ask and we will give a reasoned one rather than a house preference.

Case Submission

Sending an Essix Case

Scans from iTero, 3Shape and Medit, or a conventional impression. Take the record as close to debond as you can.

Send with the case:

  • Scan or impression of the arch as finished
  • Opposing arch, so the coverage can be checked
  • The Essix material and gauge you want
  • Trim preference — scalloped at the margin, or extended
  • Whether a duplicate set should be made at the same time

Cases arrive most often without a gauge specified. We will come back and ask rather than guess, but that costs a day — send it up front and the case moves straight through. Upload the case, or open an account if you have not worked with us before.

Start a case

Send one case. Keep the scanner.

Open a partner account and your first case moves with a shade record and our remake guarantee — if a unit does not seat, we redo it at no charge.

  • Free 3Shape TRIOS 6 scanner for active partners
  • Under-2% remake rate — remakes at no charge
  • One named technician you reach directly — no call center

Prefer to talk? +1 747-268-0808

No call center — you hear back from the lab, not a bot.

Essix FAQ

Essix Retainers — Questions Dentists Ask

It is a trade-off, and it is your call rather than ours. A heavier gauge lasts longer and is more rigid, which is what you want for a patient who is hard on appliances. A lighter one is more comfortable and less bulky, which is what you want for a patient whose compliance is fragile — and a comfortable retainer that gets worn beats a durable one that lives in a drawer. Tell us the gauge with the case; if you want a recommendation for a particular patient, ask and we will give you one.

Yes, and that is worth understanding rather than discovering later. Full occlusal coverage is what makes the appliance retain, and it is also what holds the posterior teeth apart. If you finished a case wanting the occlusion to seat in over the following months, a fully covering thermoformed retainer works directly against that. In those cases a Hawley leaves the posterior teeth free to settle while still holding the anterior alignment.

See Hawley retainers

Scalloped at the gingival margin is the usual default — cleaner, less tissue coverage, more comfortable. Extending the trim line onto the tissue gives more retention and is worth it when the crowns are short or the fit is marginal. There is no universally correct answer, so specify what you want with the case rather than leaving it to the bench.

Realistically, no. Thermoformed retention material does not repair in a way you would want to hand back to a patient — a bonded crack is a stress concentration waiting to fail again. It is replaced, not repaired, which is exactly why we archive the finished-arch file and why a duplicate set ordered up front is such a cheap insurance policy. If a patient is fracturing retainers regularly, the appliance is not the problem — investigate the parafunction.

Full occlusal coverage is the whole appliance — we need the opposing arch to see how that coverage will meet in closure, not just to articulate a model. Send the finished arch as it debonded, the Essix material and gauge you want, and your trim preference. Most of what goes wrong with this retainer traces back to a record taken too long after debond, when the teeth had already begun to move.

How to send a file

Switching labs, de-risked

New to us? We archive the finished-arch file for your practice, so a replacement comes back in the same gauge without a new appointment — and a duplicate set ordered up front is cheap insurance against a lost retainer.

Let's talk

+1 747-268-0808 Contact the lab
